상해 색깔 디지털 방식으로 공급자 Co., 주식 회사.
직업적인 디지털 방식으로 직물 인쇄 장비 & 관련된 물자 장군 Supplier
 |
| Place of Origin: | Shanghai, China |
| 브랜드 이름: | SAER |
| 인증: | CE Certification |
| Model Number: | CSR2200 |
| Minimum Order Quantity: | 1 set |
|---|---|
| 가격: | 협상 가능 |
| Packaging Details: | Non-fumigation wooden box |
| Delivery Time: | 10 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Sofware: | ONYX | Heater Power: | 6kw |
|---|---|---|---|
| Automatic Grade: | automatic | Voltage: | 110V/220V |
| Suitable Fabric Type: | Knitted Or Woven Cotton,linen,silk,wool,chemical Fiber,nylon.oxford Etc | Media Processing: | Roll To Roll + Auto Feeding + Auto Roll Up |
| Ink Type: | Sublimation ink, Pigment ink | Color & Page: | MULTICOLOR |
| Usage: | Indoor & Outdoor Advertising Field | Compatible OS: | Windows 7& Windows 10 |
| 강조하다: | wide format digital textile printer,Epson i3200 textile printer,2200mm automatic textile printer |
||

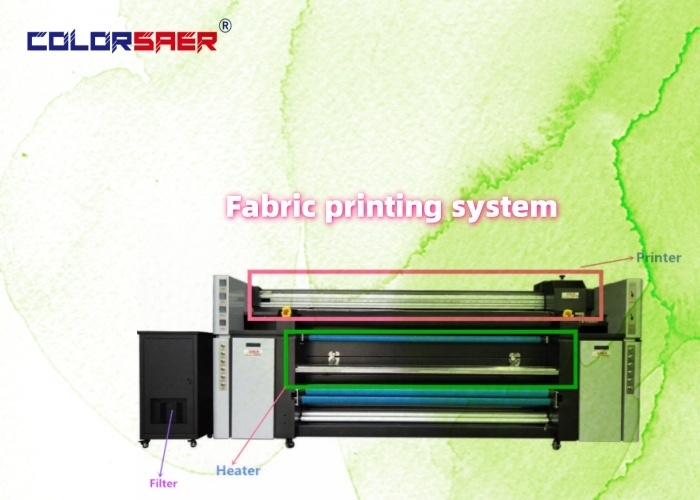

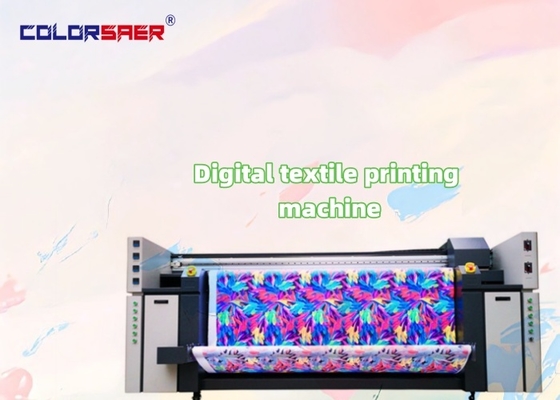

Product name: Digital Printers 4 Head 3 Heads Textile Printing Machine 2200mm Textile Printing Machinery
Printing Speed:
|
Printing resolution and speed
|
Resolution(dpi) speed |
| 360*1800dpi(3 pass) 65m2/h | |
| 720*1220dpi(4 pass) 45m2/h | |
| 720*1800dpi(6 pass) 35m2/h |
Specifications:
| Product Parameter | |
| Model type | CSR2200 |
| Print head | 3 pieces Epson i3200 |
| Ink | Sublimation ink, pigment ink |
| Number of nozzles | (400 nozzles*8lines)*3head |
| Color | Dual CMYK |
| Print head high | 1.5mm/6mm (adjustable) |
| Ink supply mode | Continuous ink supply |
| Max materials width | 2200mm |
| Max printing width | 2000mm |
| Roll outer diameter | 3 inch |
| Maximum weight for roll material | 100kg |
| Interface | USB2.0 |
| RAM | 128M |
| Printer Power | AC100-120V/AC220-240V(adjustive) 50/60HZ |
| Power | Heater 3.5kw |
| Printer 100w | |
| Temperature | 30-32℃ |
| Humidity | 40-60%(Non-condensing) |
Advantages:
1. Equipped with the feeding motor Positive and Negative transfer function, taking and feeding constant tension transmission system.
2. The unique print platform design to make the cloth always smooth in the process of printing.
3. Unique filtering lampblack system, make the picture very clean.
4. Taking up and feeding roller are inflatable roller.
5. Taking up and feeding fabric are smoothly
Main Features :
Print head:
Three Epson Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy. Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.
Guid Rail:
Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit ．
X axis and Yaxis:
X axis and Y axis are using AC servo motors.
Application industry:
1), personality print: such as shops, cell phone decoration shop, personality gift shop.
2), advertising industry: indoor and outdoor advertising.
3), products proofing: all kinds of traditional printing sample production.
4), studio: digital image production.
5), clothing industry: sample print or character pattern of color printing.
