제품 상세 정보:
|
| 미디어 처리: | 롤 롤 + 자동 피드 + 자동 롤업 | 잉크 유형: | 승화 잉크, 안료 잉크 |
|---|---|---|---|
| 색상 및 페이지: | 다색 | 용법: | 실내 및 실외 광고 분야 |
| 호환 OS: | Windows 7 & Windows 10 | 소프웨어: | 오닉스 |
| 히터 전원: | 6kw | 자동 등급: | 오토매틱 |
| 전압: | AC100-120V/AC220-240V | 적합한 직물 유형: | 니트 또는 짠면, 린넨, 실크, 양모, 화학 섬유, Nylon.oxford 등 |

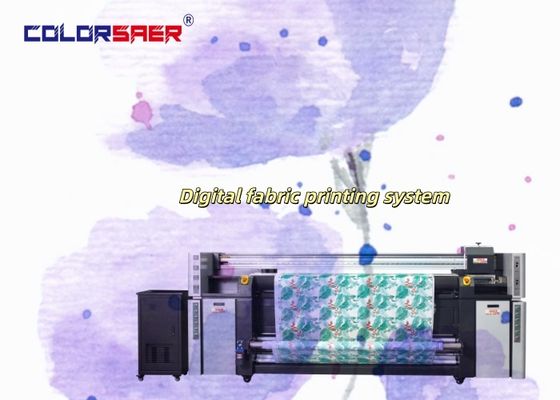

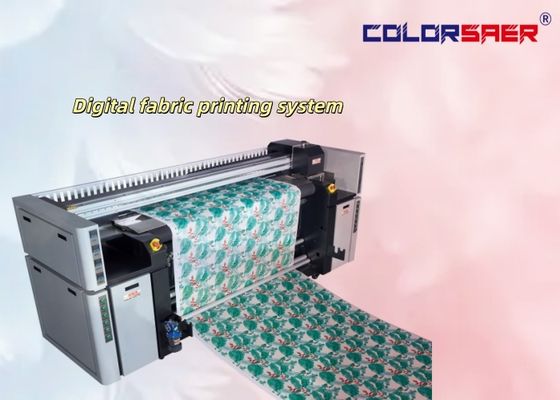

Product name: SAER Digital Fabric Printing Machine Textile Printer With Four Print Heads for Cotton & Polyester
Machine working speed:
|
Printing resolution and speed |
Resolution(dpi) speed |
| 360*1800dpi(3 pass) 65m2/h | |
| 720*1220dpi(4 pass) 45m2/h | |
| 720*1800dpi(6 pass) 35m2/h |
Machine Specifications:
| Product Parameter | |
| Model type | CSR2200 |
| Print head | 3 pieces Epson i3200 |
| Ink | Sublimation ink, pigment ink |
| Number of nozzles | (400 nozzles*8lines)*3head |
| Color | Dual CMYK |
| Print head high | 1.5mm/6mm (adjustable) |
| Ink supply mode | Continuous ink supply |
| Max materials width | 2200mm |
| Max printing width | 2000mm |
| Roll outer diameter | 3 inch |
| Maximum weight for roll material | 100kg |
| Interface | USB2.0 |
| RAM | 128M |
| Printer Power | AC100-120V/AC220-240V(adjustive) 50/60HZ |
| Power | Heater 3.5kw |
| Printer 100w | |
| Temperature | 30-32℃ |
| Humidity | 40-60%(Non-condensing) |
Advantages:
Main Features:
Guid Rail:
Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit.
X axis and Yaxis:
X axis and Y axis are using AC servo motors.
Print head:
Three Epson Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy. Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.
Application industry:
